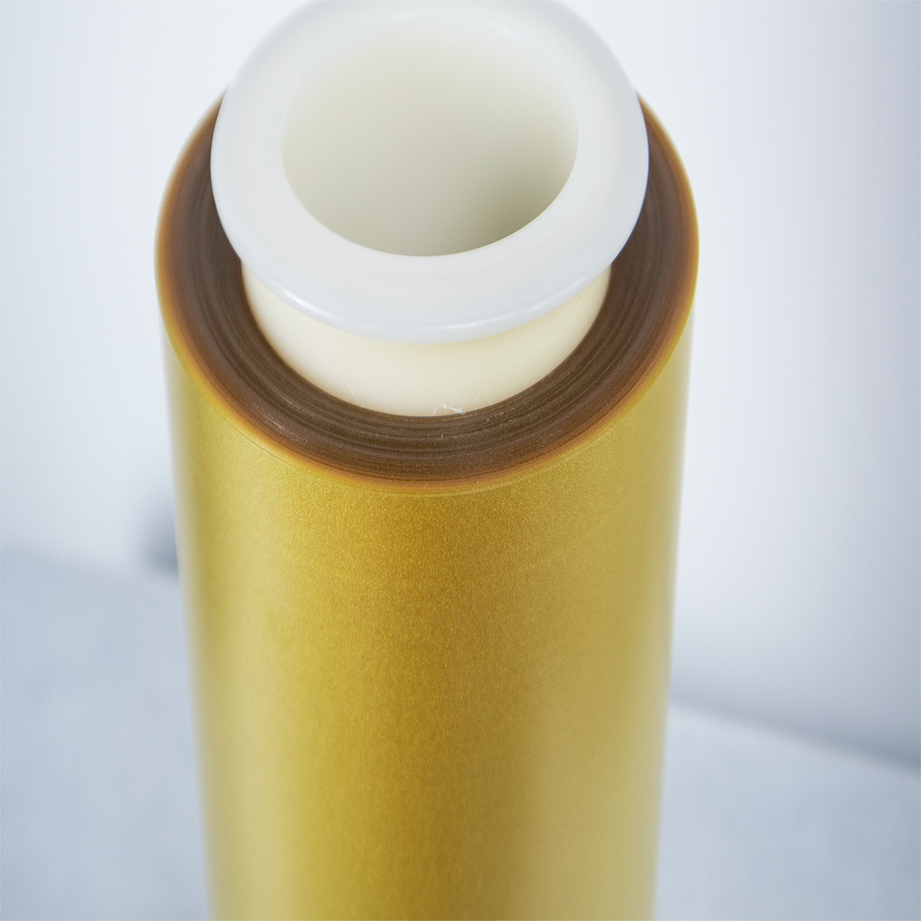

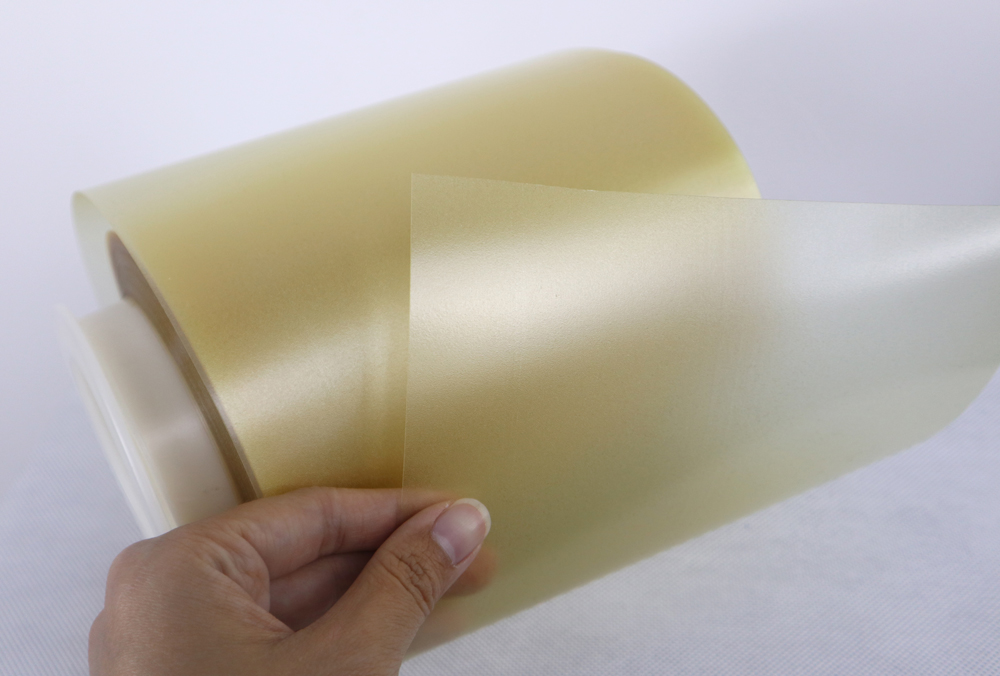

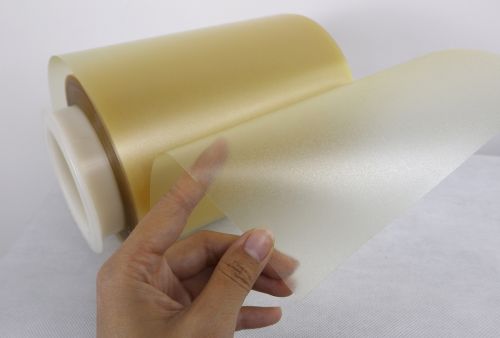

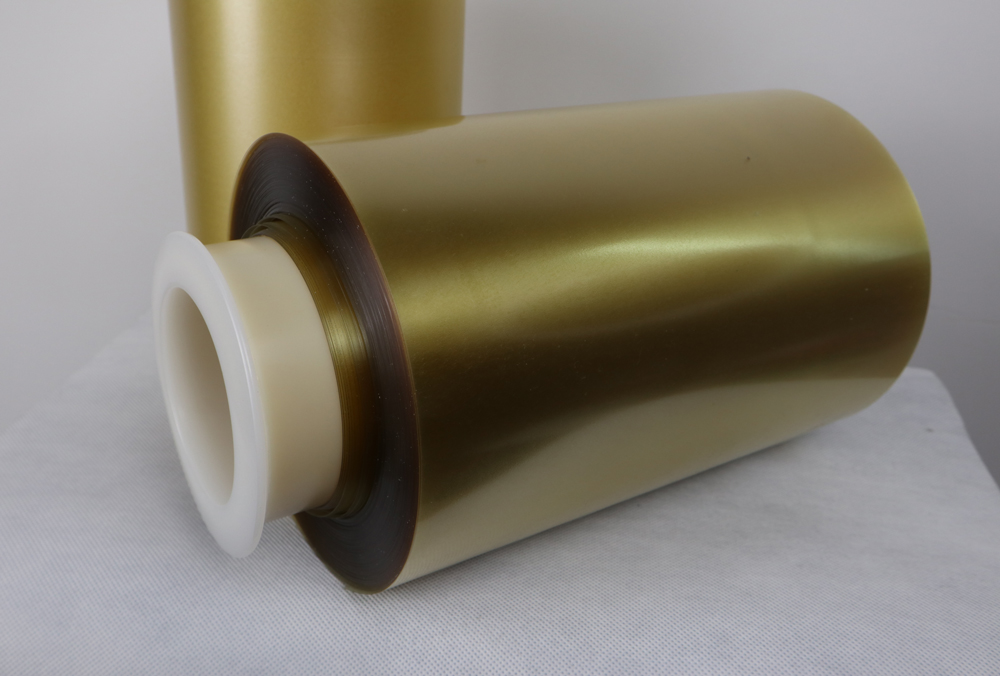

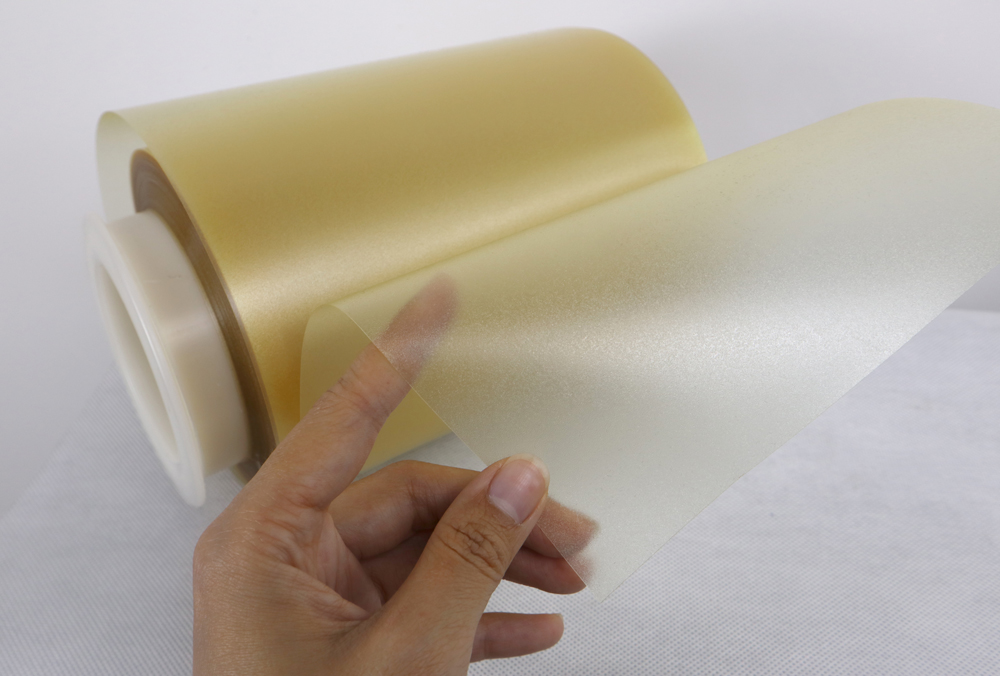

PEI FILM（Polyetherimide film)

Characteristic：

Amorphous thermoplastic high temperature resistant film. (Can be used for a long time in the range of 160℃-180℃)

Mechanical properties such as extremely high strength and modulus at elevated temperatures. Excellent dimensional stability. (low creep sensitivity, low and uniform coefficient of thermal expansion)

Excellent insulating properties, stable dielectric constant (Dk) and low dissipation factor (Df) over a wide temperature and frequency range.

Excellent flame retardancy and low smoke generation, in line with ABD, FAR and NBS requirements.

Excellent chemical resistance to most oils, detergents and disinfectants. Can withstand a variety of disinfection methods.

With visible light, infrared and microwave penetration.

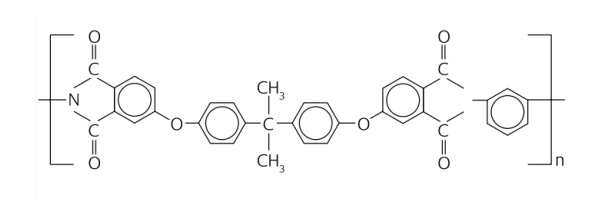

Molecular structure:

PEI film is a polyetherimide film material known for its excellent thermal resistance, flame retardancy, and outstanding electrical properties, making it the material of choice in high-end electronic and electrical applications. PEI film also offers good thermoforming performance and can be heat-sealed with a variety of materials.

APPLICATION OF PEI FILM

The main application scenarios of PEI film: electronic and electrical industries with special requirements such as waterproof, dustproof and breathable, speaker diaphragm, high temperature supercapacitor, etc.
